Sawmill ARTIGLIO
Year - 2002 - ( Refurbished in 2023 )
Technical Details :
- Flywheel - 1300 mm
- Flywheel band - 168 mm
- Max. blade length - 8860 mm
- Three - Phase 400V 50hz Motors
- Primary motor power - 55,8 kW
- Blade tension motor - 0,55 kW
- Pushing blade guidemotor - 1,5 kW
- Flywheel inclination motor - 0,12 kW
- Hydraulick brake unit motor - 1,5 kW
- Central Crowing
Equioment Consists :

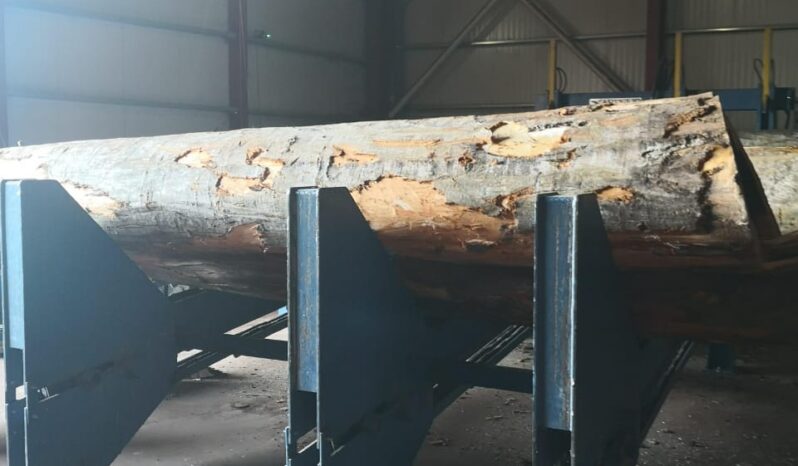

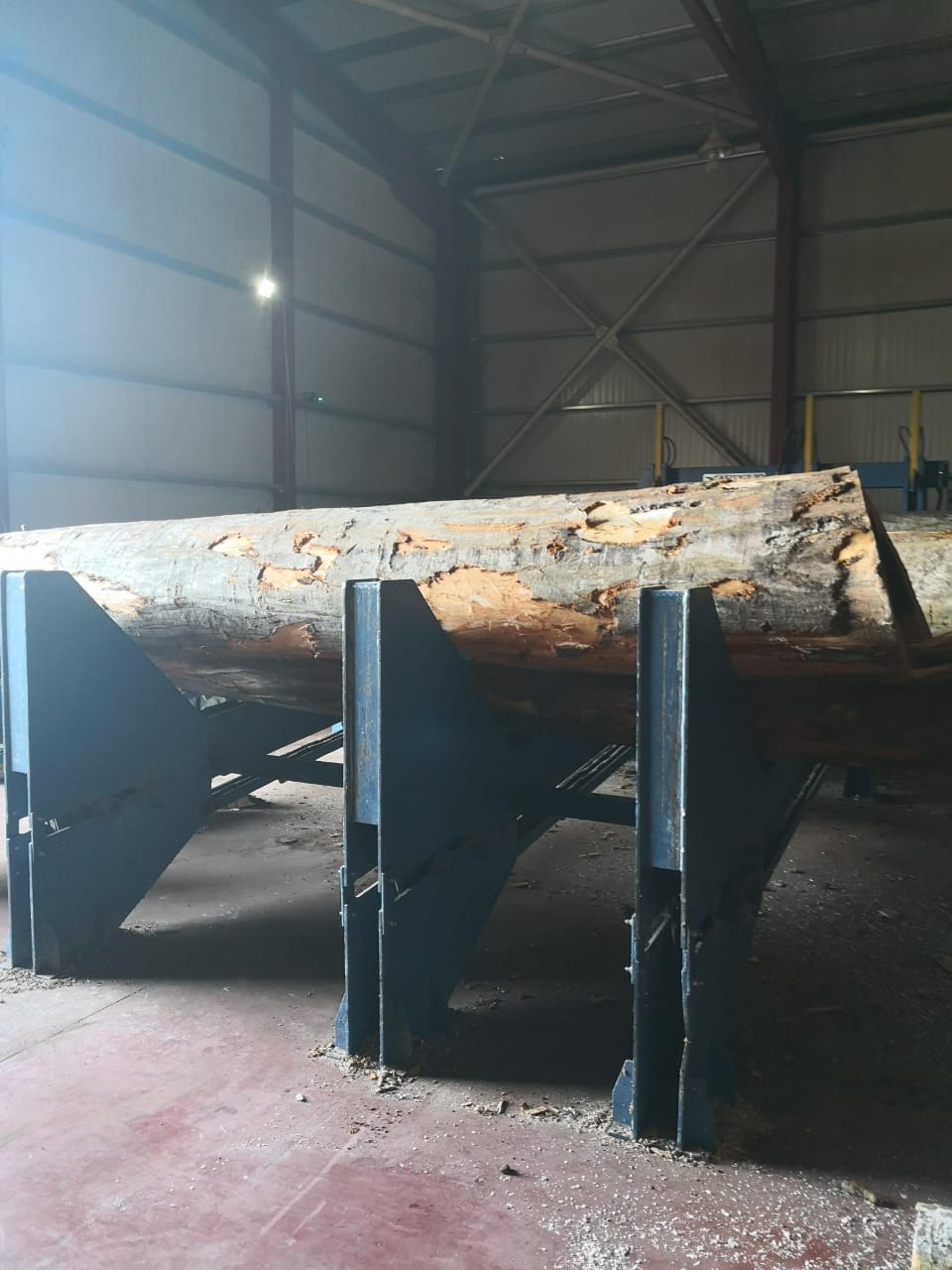

- 3 Log clamping pressure
- Fixed hooks
- Mobile knockers with 3 fixed positions
- Hydraulicl log turner
- El . divider with 50 works programs
- Transversal vice movement with two speed motor 1,8 - 8 mt./min.
- Hydrostaic advancement with steel cable towing

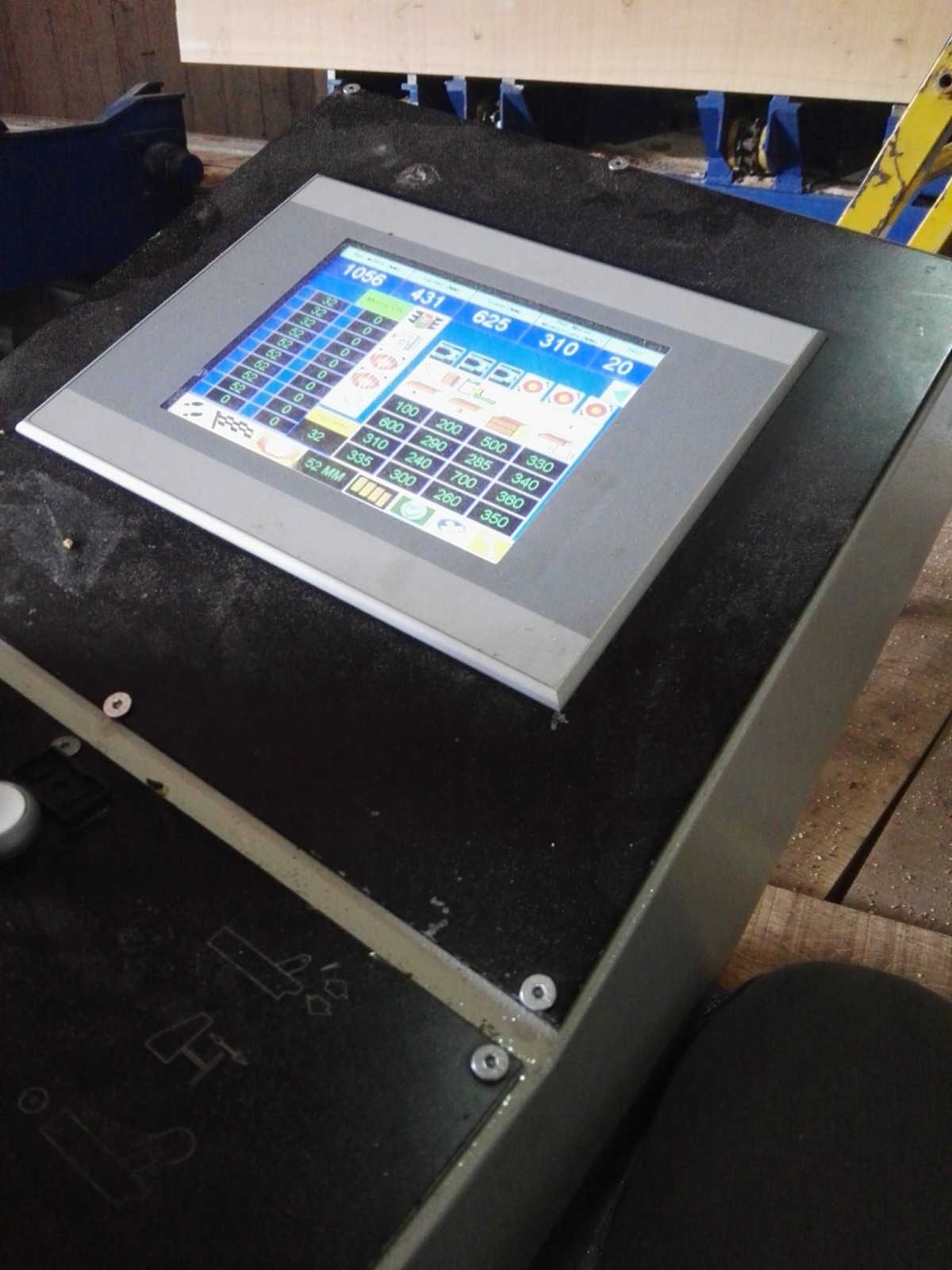

- Comand pult
- Automatic centralized rubrication
- Pantograph for cable
