Technical Details :
Year - 2009
Beam welding machine outlet height: 1400mm (UK beam from ground)
Min. strap length: 0.8 m
Max. beam length: 16.0 m
Base width during production: 58 mm (inside diagonals)
Finished beam width: 70 – 116 mm (external dimensions of bottom chords)
Lattice girder production speed: max. 15 m/min
Design of the wire feed speed: 18 m/min (upper and lower belt)
38 m/min (diagonals)
Carrier types that can be produced: KT KTS
Top belt Ø: 5 – 16 mm 5 – 7 mm
Lower belt Ø: 5 – 16 mm 5 – 7 mm
Diagonal Ø: 4.5 – 9 mm 5 – 7 mm
Height: 70-400mm 80-310mm
Division of the diagonal: 190 – 210 mm 200 mm

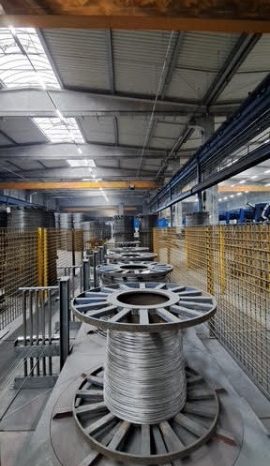

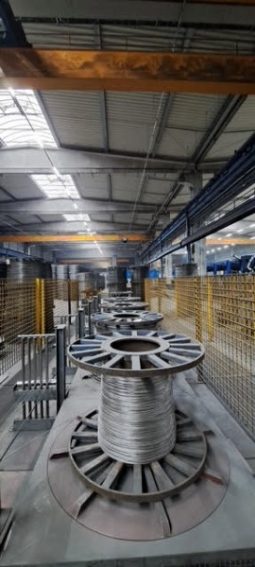

Primary material: Cold or hot rolled reinforcing steel from coil in accordance with EN 10080:2005 in
weldable quality, max. carbon content 0.20 %
The line is in excellent working condition !
